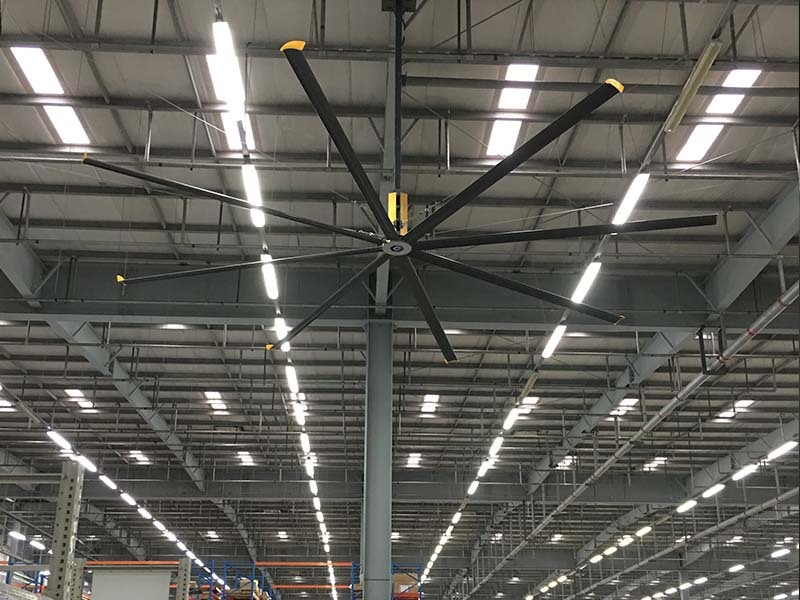

Guanhua series super large energy-saving fan

Classification:

Energy-saving products

Return

Consult

Project

Specification parameters

Model	Blade diameter mm	Number of fan blades	Max wind speed m/s	Coverage area ㎡	Power kw	Voltage V	weight kg
CBI-ESF-7.3-8Z	7300	8	3.5	1650	1.5	380/220	154
CBI-ESF-6.3-8Z	6300	8	3.2	1350	1.5	380/220	146
CBI-ESF-5.3-8Z	5300	8	3.2	1000	1.5	380/220	138
CBI-ESF-7.3-6Z	7300	6	3	1450	1.5	380/220	137
CBI-ESF-6.3-6Z	6300	6	3	1250	1.5	380/220	131
CBI-ESF-5.3-6Z	5300	6	3	800	1.5	380/220	125

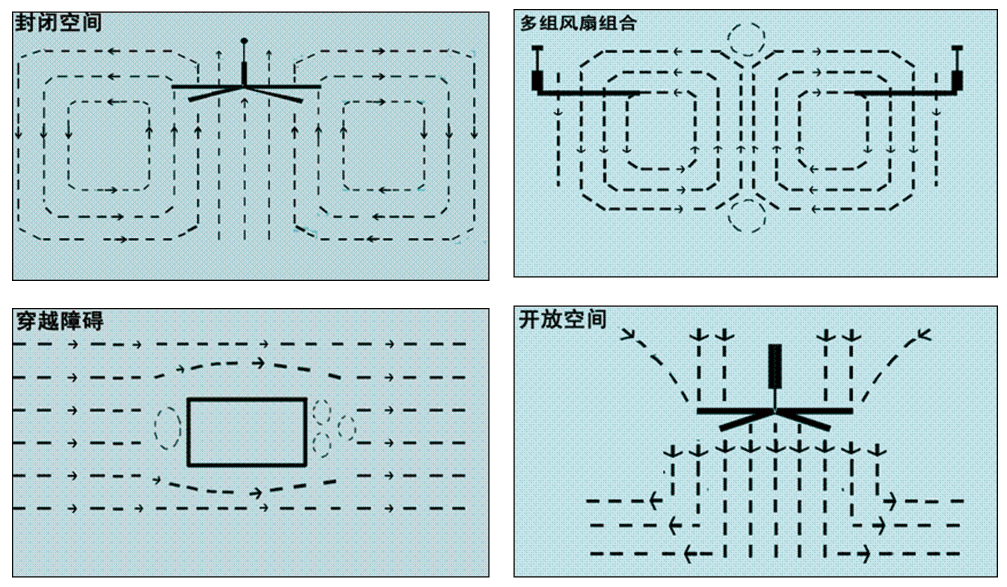

Schematic diagram of air flow

Scope of application

Large spaces such as factories, airports, logistics and warehousing, exhibition halls, museums, shopping malls, supermarkets, farms, product exhibition halls, gymnasiums, theater auditoriums, restaurants canteens, automobile 4S shops, waiting rooms, etc.
